Haut filtre à manches de poche de la perméabilité 99,97% actif longtemps la vie
Détails sur le produit:
Lieu d'origine: | La Chine |
Nom de marque: | LESITE |
Certification: | CE |
Numéro de modèle: | Filtre à manches en aluminium |
Conditions de paiement et expédition:
Quantité de commande min: | Négociez |
---|---|
Prix: | Negotiate |
Détails d'emballage: | emballage d'exportation |
Délai de livraison: | 5-8 jours après dépôt |
Conditions de paiement: | T/T, L/C |
Capacité d'approvisionnement: | ² de 5000 m par mois |
Détail Infomation |
|||
Efficacité: | 99,97%, H13~H14 | Max Humidity: | 100% |
---|---|---|---|
Taille: | Adapté aux besoins du client | Matériel: | Fibre de verre |
max.humidity: | 100% | Épaisseur facultative: | Aluminium/GI : 21, 25, 46 ; Plastique : 25 |
Vue: | alliage d'alluminum | Utilisation: | D'air d'état filtre pré |
Surligner: | filtre à manches de 99,97% poches,Haut filtre à manches de poche de perméabilité |
Description de produit

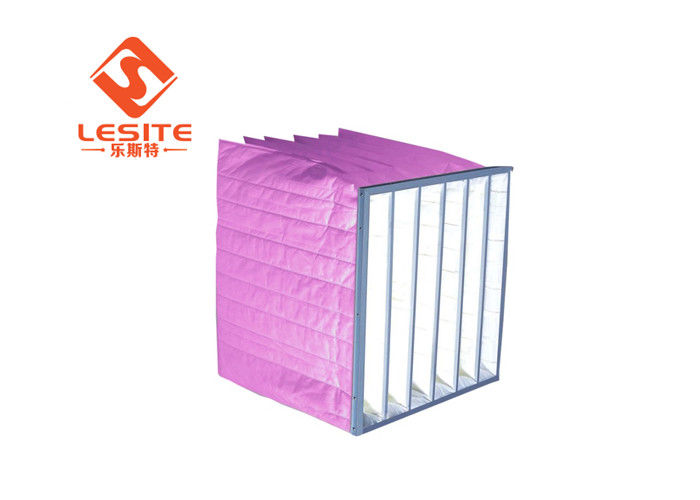

High Permeability Aluminum Bag Filter Long Working Life
1. Product Specification: Pocket/Bag Filter is widely applied to the air conditioning system as intermediate filtration. It is mainly used to remove dust particles of 1-5μm in industrial factory. Bag filter is made of high quality non-woven filter media, with the advantages of small resistance and large air volume. The types of bag filter are bag type, panel type and combination type available.
2. Low Resistance: Special fiber material and reasonable structure make the bag filter with maximum wind speed.
3. Stable Performance: The chemical filter fiber of bag filter is hard to be influenced by the static. As long as the filter material is not damaged, the cleaning efficiency is as the same as it is produced.
4. Versatility: The structure and size of the bag filter is in line with the one of international accepted standard. Therefore, it is suitable for most ventilation systems of central air conditioning and central fan system
Material List
Frame Material | Aluminum/Galvanized Steel |
Filtering Material | Fiberglass/Non-woven fabric |
Support | Metal Bead |
Maximum Humidity | ≤100%HR |
Maximum temperature |
≤80℃
|
Application | Air condition/Ventilation/Pharmacy/Electronic/Food |
Efficiency: G3 / G4
Media: Synthetic fiber / Polyester fiber
Pocket type: Ultrasonic bag/Sewing bag
Frame: Extruded aluminum / GI / Plastic
Optional thickness: Aluminum / GI: 21, 25, 46; Plastic: 25
Max Temperature: 50℃
Max Humidity: 100%
Pocket filter is mainly used to filtrate the dust particles with the diameter of 0.5um and above. It has the advantages of more filtering area, high dust holding capacity, low resistance, and can be washed and used repeatedly, etc.
Advantages
7 pleats/feet, 40% higher than normal product With holding frame, very strong structure Customer can replace the material very easy by themselves, the holder and frame can be recycled Washable, Can be reused when necessary
Frame | Aluminum alloy |
Filter medium | Synthetic fiber |
Max. temperature | 80°C |
Max. humidity | 80%RH |
